NOVA

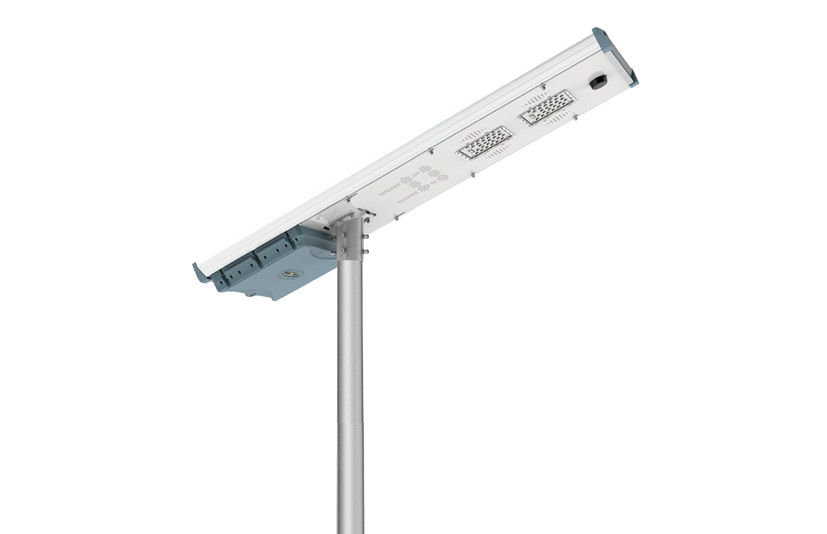

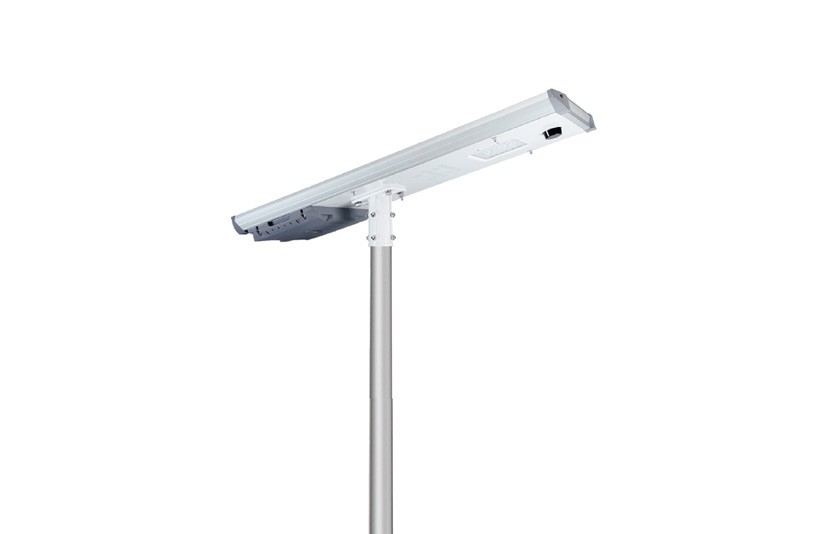

All in One Solar Street Light
All in one Solar Street Light also known as Integrated Solar Street Light. Appearance Patent No:201830099047.7 Utility Model Patent No:201820733410.3 Utility Model Patent No:201820723000.8 integrated design and exquisite appearance; detachable lithium storage and control battery case, easy for maintenance; intelligent regulation, microwave induction, energy saving and environmental protection, effectively extending the service life of the whole light; design of bat airfoil light distribution, providing even light distribution.
30W 40W 50W 60W
Model No.KY-Y-YF-001
System VoltageDC12V
Lithium Battery12.8V/30AH
Solar PanelMonocrystalline 60W/18V(410×1053mm)


Model No.KY-Y-YF-002
System VoltageDC12V
Lithium Battery12.8V/42AH
Solar PanelMonocrystalline 90W/18V(505×1020mm)


Model No.KY-Y-YF-003
System VoltageDC12V
Lithium Battery12.8V/48AH
Solar PanelMonocrystalline120W/18V(505×1330mm)


Model No.KY-Y-YF-004
System VoltageDC12V
Lithium Battery12.8V/60AH
Solar PanelMonocrystalline120W/18V(505×1330mm)


Product Features

  • Design of bat wing light distribution, providing even light distribution.


  • Intelligent regulation, microwave induction, energy saving and environmental protection, effectively extending the service life of the whole light.


  • Patented appearance design, integrated design, exquisite appearance.

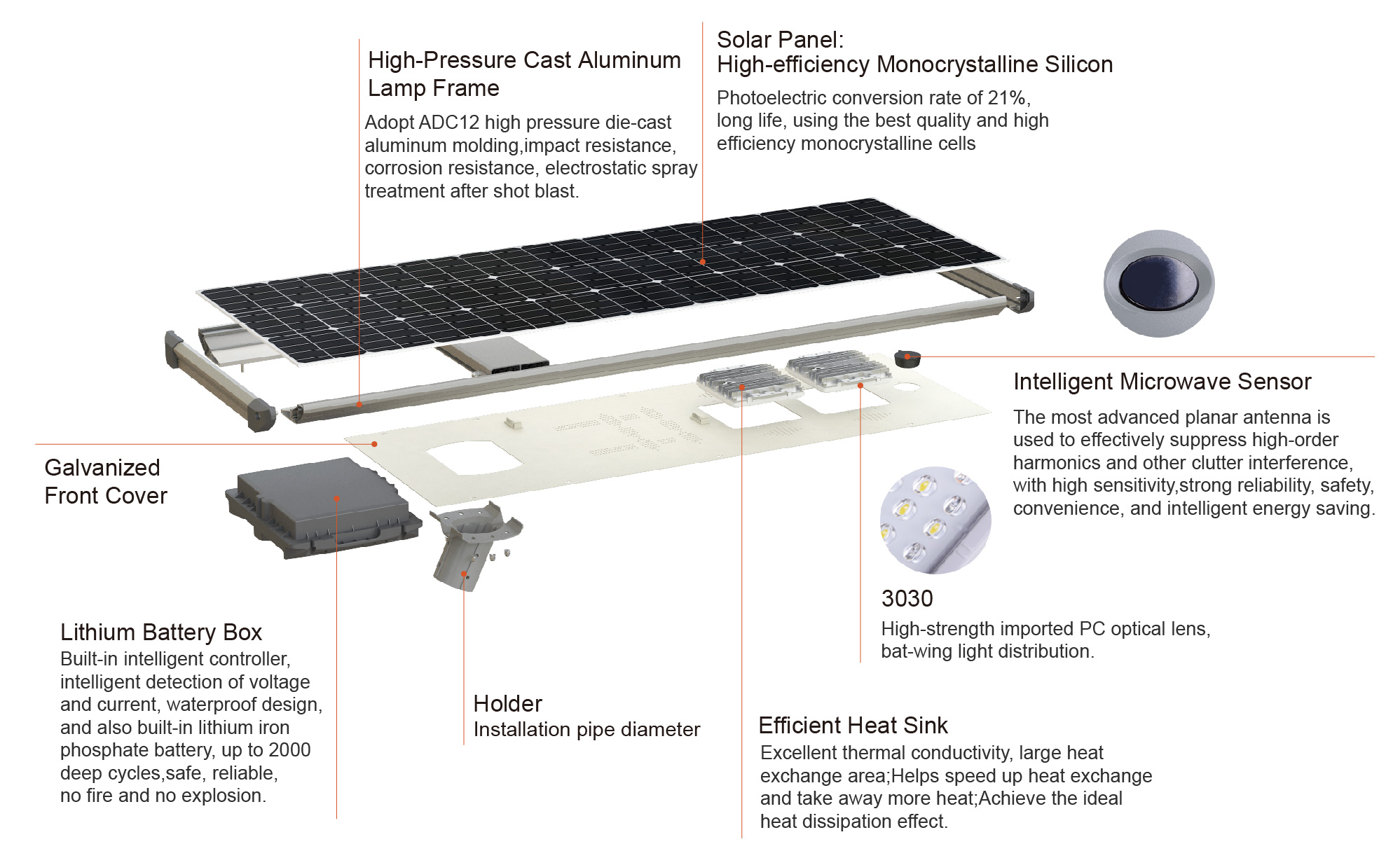

Product Structure Display



Technical Parameters

Model No.KY-Y-YF-001KY-Y-YF-002KY-Y-YF-003KY-Y-YF-004
Rated Power30W40W50W60W
System VoltageDC12V
Lithium Battery

12.8V/30AH

12.8V/42AH

12.8V/48AH

12.8V/60AH

Solar Panel

Monocrystalline 60W/18V

(410×1053mm)

Monocrystalline 90W/18V

(505×1020mm)

Monocrystalline120W/18V

(505×1330mm)

Light Source3030/5050
Light DistributionBat-Wing light distribution(150°x75°)
Light Efficiency≥130LM/W
Color Temperature3000K/4000K/5700K/6500K
CRI≥Ra70
IPIP65
IKIK08
Working Temperature-10℃~+60℃
Lamp Weight15.0kg17.0kg21.5kg22.3kg
LED Lifespan>50000H>50000H
Controller12V/24V 10A12V/24V 15A
Mount Diameter
φ60mmφ76mm
Lamp Dimension1090×420×89mm1057×518×89mm1367×518×89mm1367x518x105mm
Packing Dimension

1150x470x145mm

(1pc/CTN)

1120x570x150mm

(1pc/CTN)

1423×570×165mm

(1pc/CTN)

Holder Package Dimension

465x405x155mm

(4pcs/CTN)

420x420x190mm

(4pcs/CTN)

Suggested Mount Height

6m/7m6m/7m/8m7m/8m/9m
