LUMO

AC street light

Patented appearance design (appearance patent No.: 201730356707.0), multiple colors available; modular integrated design, convenient installation and maintenance; efficient energy conservation, extending service life of the whole light; patented lens and bat airfoil light distribution, making light distribution more even.

60W

Model No.	KY-D-XC-001
System Voltage	AC100V～305V
Rated current	1.5A
Light Efficiency	≥130LM/W

Product Features

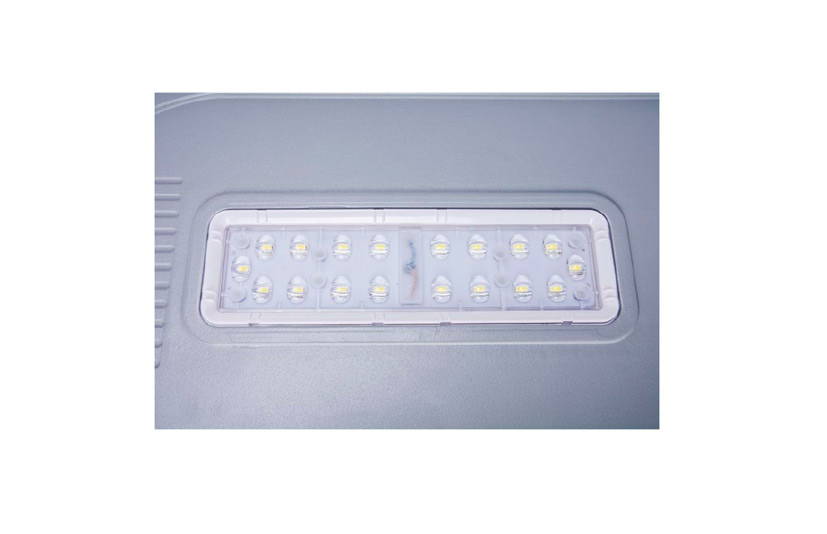

Patented lens and bat airfoil light distribution, making lighting more even.
Intelligent control system, providing lighting as required and reducing power consumption for the whole light.
Both light poles and foundation screws are made of Q235 steel, and both light poles and foundation concretes can meet the strength requirements of no deformation or damage under Level-13 typhoon limit.

Product Structure Display

Technical parameters

Model No.	KY-D-XC-001	IP	IP65
Rated Power	60W	IK	IK08
System Voltage	AC100V～305V	Working Temperature	-10℃～+60℃
Frequency Range	50-60Hz	Lamp Weight	4.0kg
Rated current	1.5A	LED Lifespan	＞50000H
Light Source	3030/5050	Driver Type	Meanwell
Light Distribution	Bat-Wing light distribution(150°x75°)	Mount Diamete	φ50mm
Light Efficiency	≥130LM/W	Lamp Dimension	670x250x92mm
Color Temperature	3000K/4000K/5700K/6500K	Packing Dimension	685x400x270mm (4pc/CTN)
CRI	≥Ra70	Suggested Mount Height	6m~7m
