| Model No. | KY-Y-YJ-101 |
| System Voltage | DC12V |
| Lithium Battery | 12.8V/30AH |
| Solar Panel | Monocrystalline 105W |
Single crystal silicon solar panel with higher photoelectric conversion rate
Intelligent regulation, microwave induction, energy saving and environmental protection, effectively extending the service life of the whole light.

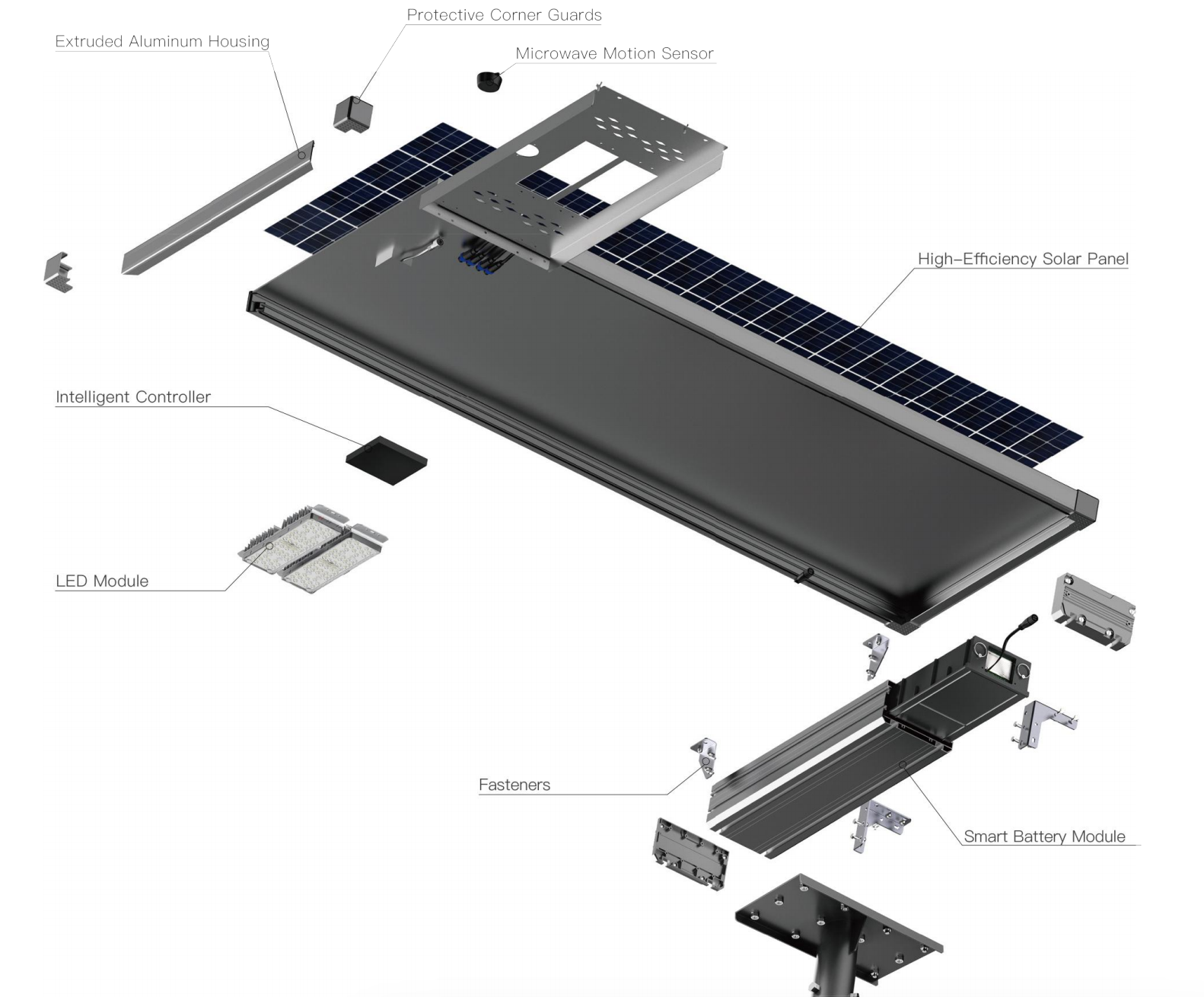

Solar lighting system integrating single crystal silicon solar panel with high photoelectric conversion rate, LED light module with high light efficiency, intelligent battery management system and efficient controller in one.
| Model No. | KY-Y-YJ-101 |
| Rated Power | 30W |
| System Voltage | DC12V |
| Lithium Battery | 12.8V/30AH |
| Solar Panel | Monocrystalline 105W |
| Light Source | 5050 |
| Light Distribution | Bat-Wing light distribution(150°x75°) |
| Light Efficiency | ≥130LM/W |
| Color Temperature | 2700K |
| CRI | ≥Ra70 |
| IP | IP65 |
| IK | IK08 |
| Working Temperature | -10℃～+60℃ |
| LED Lifespan | ＞50000H |
| Mount Diameter | φ76-φ89mm |
| Lamp Dimension | 1060×680×90mm |
| Suggested Mount Height | 6m |
