In today's era of focusing on sustainable development and environmental protection, solar street lights have become a new choice for urban lighting. As the core component of solar street lights, the controller is indispensable and plays a leading role.
Solar street light controller is an electronic device that integrates light control, time control, battery protection and communication. It automatically adjusts the brightness and working mode of solar street lights by sensing the intensity of solar radiation and ambient light. The photoresistor built into the controller senses the light intensity and adjusts the illumination brightness according to the preset light change curve. At the same time, it also has a time control function, which can set the night working mode according to the time to ensure that the solar street lights work normally within the required time period.
1. Rechargeable lighting power control system:
Photovoltaic MPPT charging lighting power controller, using high-speed MOSFET pre-drive circuit design to improve charge and discharge efficiency.
The product has the following characteristics:
1. Colloidal/ternary/lithium iron phosphate and other batteries can be used;
2. It has the function of battery low-voltage self-activation to ensure normal charging under the condition of battery feeding;

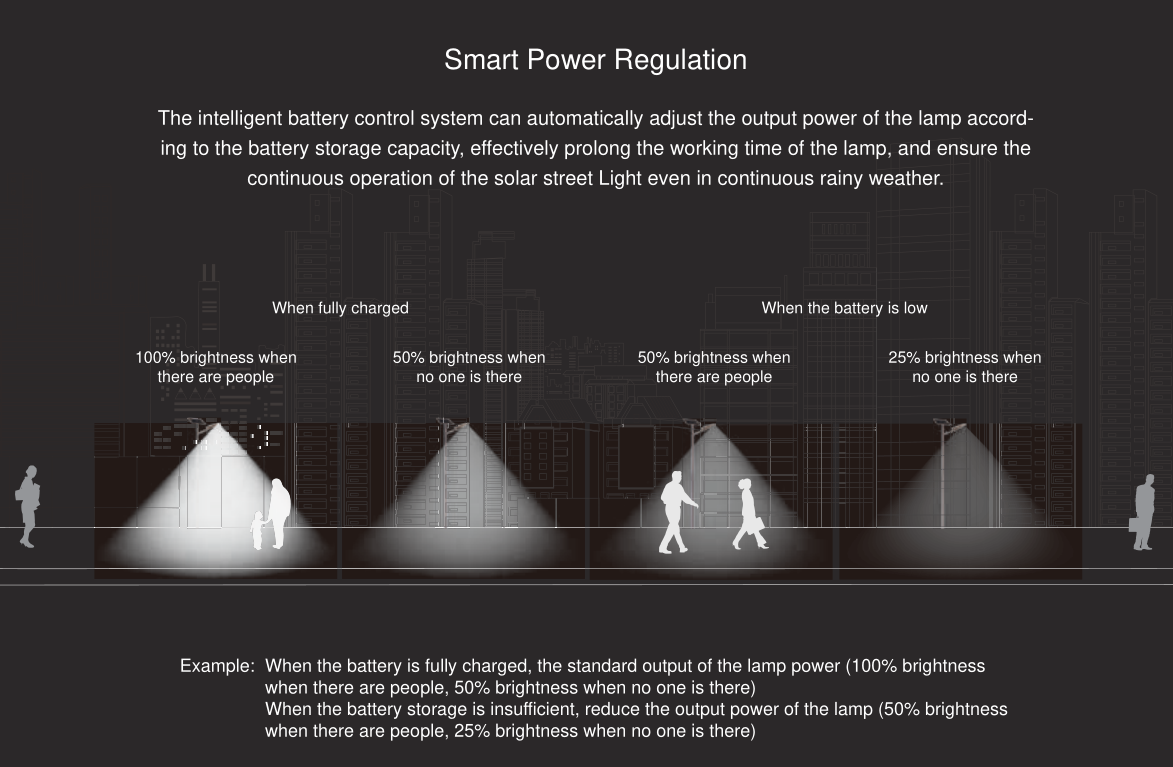

3. The output power of the load can be automatically adjusted according to the remaining capacity of the battery to extend the use time;
4. Voltage-sensitive output to load can be set to normally open/timed/light control and other output modes:
5. With sleep function, can effectively reduce its own loss:
6. With multiple protection functions, when the load is open or short circuit, system overcurrent, overvoltage and overtemperature,
Timely and effective protection of the product from damage, while the LED indicator gives a hint;
7. Fully waterproof design, protection level reaches IP67.
8. With real-time data, current day data, historical data and other parameters to view;
SOKOYO controller has anti-overcharge, allergic overcurrent, undervoltage, short circuit, short circuit and anti-backlash functions. As a fully sealed waterproof controller, SOKOYO controller adopts unlimited remote control setting technology, which can work underwater without any external needs, and also has good performance in waterproof, dustproof and rustproof. Coordinating the work of solar panels, batteries, and light sources is the brain of the system.
